Debug Dashboard In Bigfix Console

Objective:

• Edit and Debug a BigFix Console Dashboard
  • Steps 4 through 8

Prerequisites:

1. Open BigFix Console Presentation Debugger

Steps:

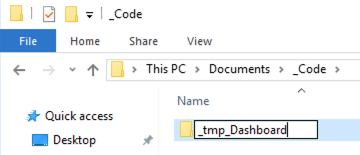

1. Create Empty Temp Folder
   • Example: _tmp_Dashboard
   • NOTE: The console will copy all of the files in the folder!
   •

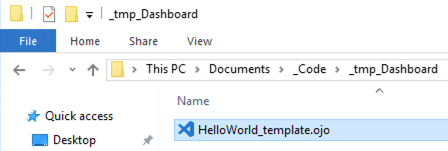

2. Put Dashboard Files in Folder
   • Example: HelloWorld_template.ojo
   •
3. Open the Debug Menu
   •
   • If missing, See here on how to enable the Debug Menu:
     • Open The BigFix Console Presentation Debugger

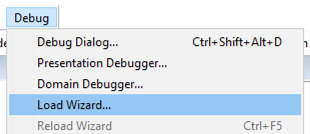

4. Select “Load Wizard…”
   • Note: Wizards and Dashboards are basically the same
   •

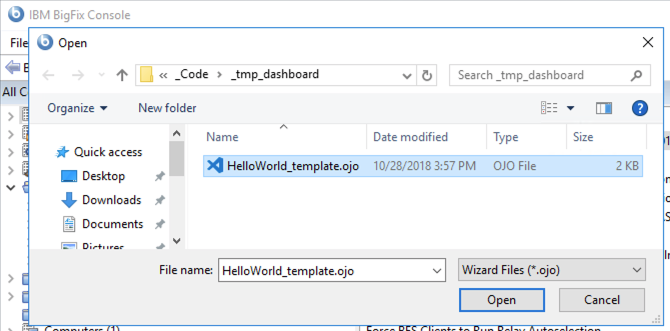

5. Load Dashboard into Console
   • Navigate into temp folder ( _tmp_Dashboard )
   • Select the OJO file
   • Click Open
   •

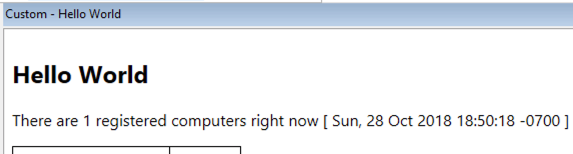

6. View the Dashboard:
   •
   • Should load automatically
   • If not, check under Dashboards -> All Dashboards

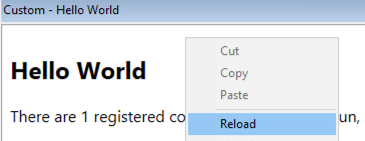

7. Reload the Dashboard
   • Right Click
   • Select “Reload”
     • Alternatively press Ctrl+F5 keys
   •
   • Notice the time displayed updates
   • Reload again as needed (like when editing the OJO file)
8. Edit the OJO file
   • Open \_tmp_Dashboard\HelloWorld_template.ojo in Visual Studio Code or similar editor
   • Make a minor change to the OJO file
     • Change Line 17 to <h2>Hello World!!!</h2>
   • Save the file ( Ctrl + S )
   • Reload the Dashboard to see the changes

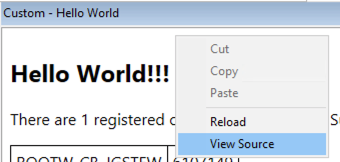

9. View Source from Console
   • Right Click
   • Select “View Source”
   •

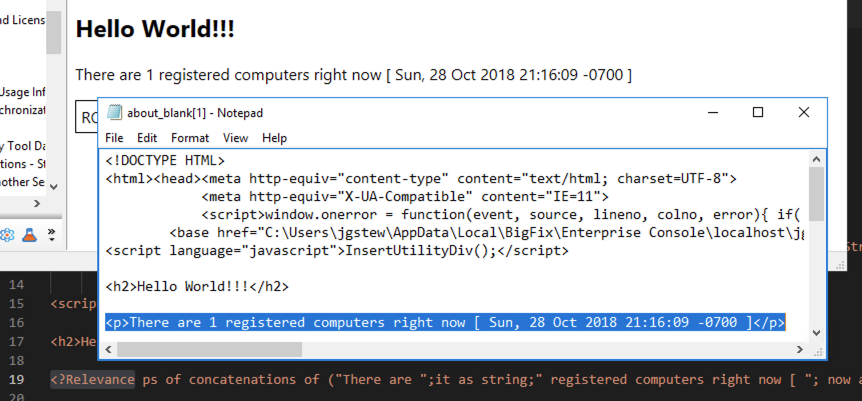

10. Compare the “Rendered” Source in Notepad to the OJO file
    • Notice that <h2>Hello World!!!</h2> is the same in both ( Line 8 vs Line 17 )
    • Compare Line 10 in Notepad to Line 19 in the OJO file
      • OJO file: <?Relevance ps of concatenations of ("There are ";it as string;" registered computers right now [ "; now as string; " ]") of number of bes computers ?>
      • Rendered HTML: <p>There are 1 registered computers right now [ Sun, 28 Oct 2018 21:16:09 -0700 ]</p>
      • Dashboard Text: There are 1 registered computers right now [ Sun, 28 Oct 2018 21:16:09 -0700 ]
    •
11. Edit the HelloWorld_template.ojo file further
    • Example: Edit Line 19 to change the session relevance to the following:
      • ps of concatenations of ("There are ";it as string;" tasks right now [ "; now as string; " ]") of number of bes tasks
    • Try some other changes on your own.
